Home » Festool 578951 OF 1400 EQ-F-Plus Plunge Router
Festool

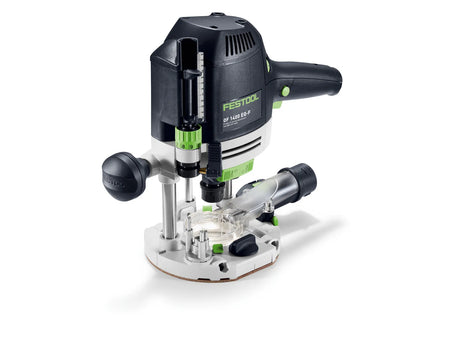

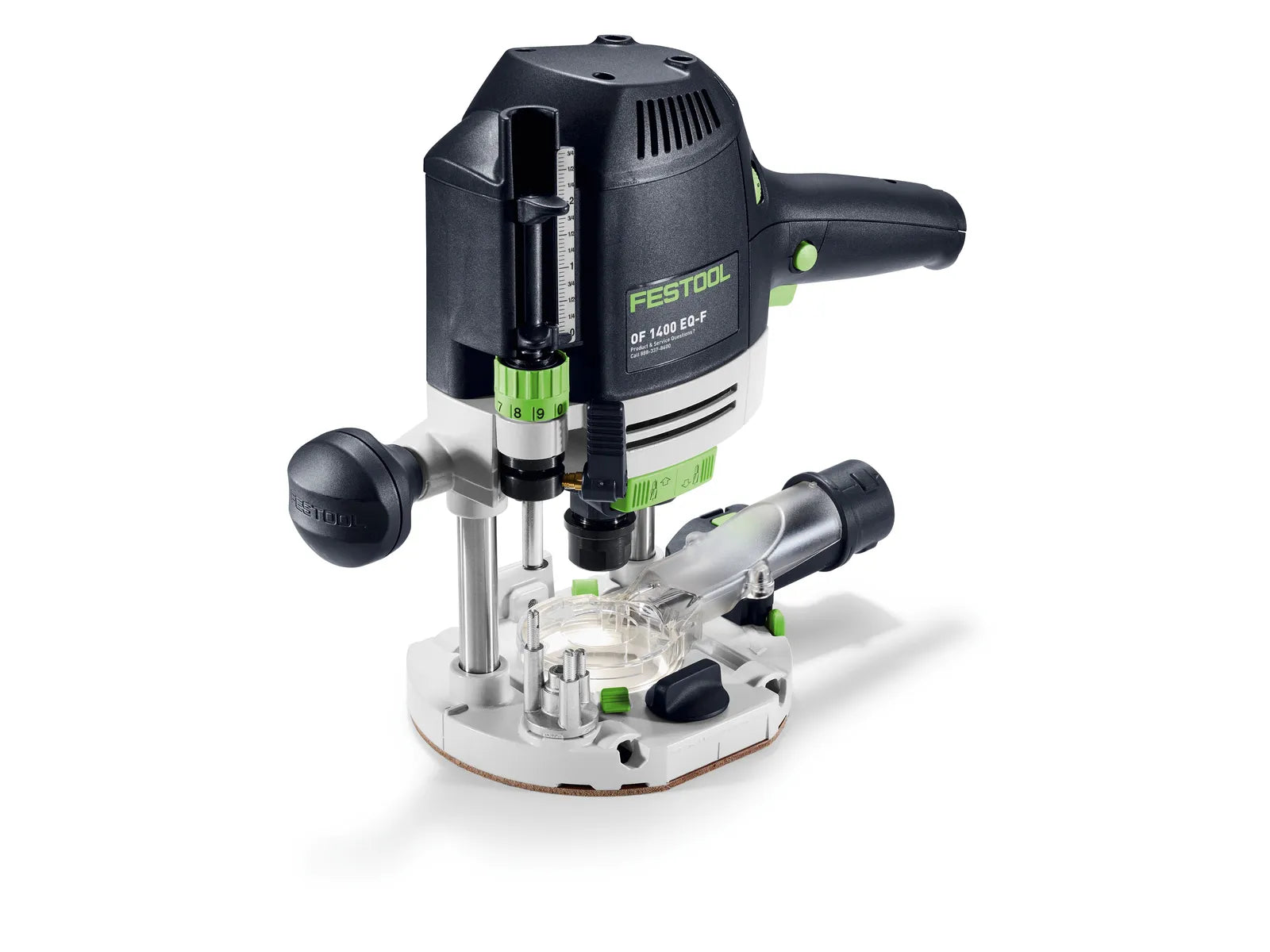

Festool 578951 OF 1400 EQ-F-Plus Plunge Router

In stock
SKU: 578951
Pre-order $799.00

Functions

Advanced power. Clear precision.

The OF 1400 Router provides 1400 watts of power in a machine that weighs less than 10 lbs. It accepts 1/2", 1/4" or 8 mm bits. With enough power to handle most routing tasks and small enough to be extremely maneuverable, the OF 1400 is the one router every tradesperson should own. With a category-leading 2 3/4" plunge depth, precise to 1/256" (1/10 mm), this router gives you the power, precision, depth of cut, and dust extraction capabilities that will simplify your routing tasks.

  • Dual‑sided guide column clamping provides ridgid stability, keeping the router steady for optimum accuracy on every pass.
  • Swap template guides and base plates tool‑free, so you can move effortlessly between different tasks without slowing down.
  • The spindle stop with ratcheting action makes bit changes quick and simple.
  • The dust extraction hood's integrated LED light ring illuminates your work area perfectly, ensuring you see every detail as you cut.
  • Fine depth adjustment is simple and accurate to 1/256 " (1/10 mm), with a generous 3/4" (20 mm) range for maximum control.

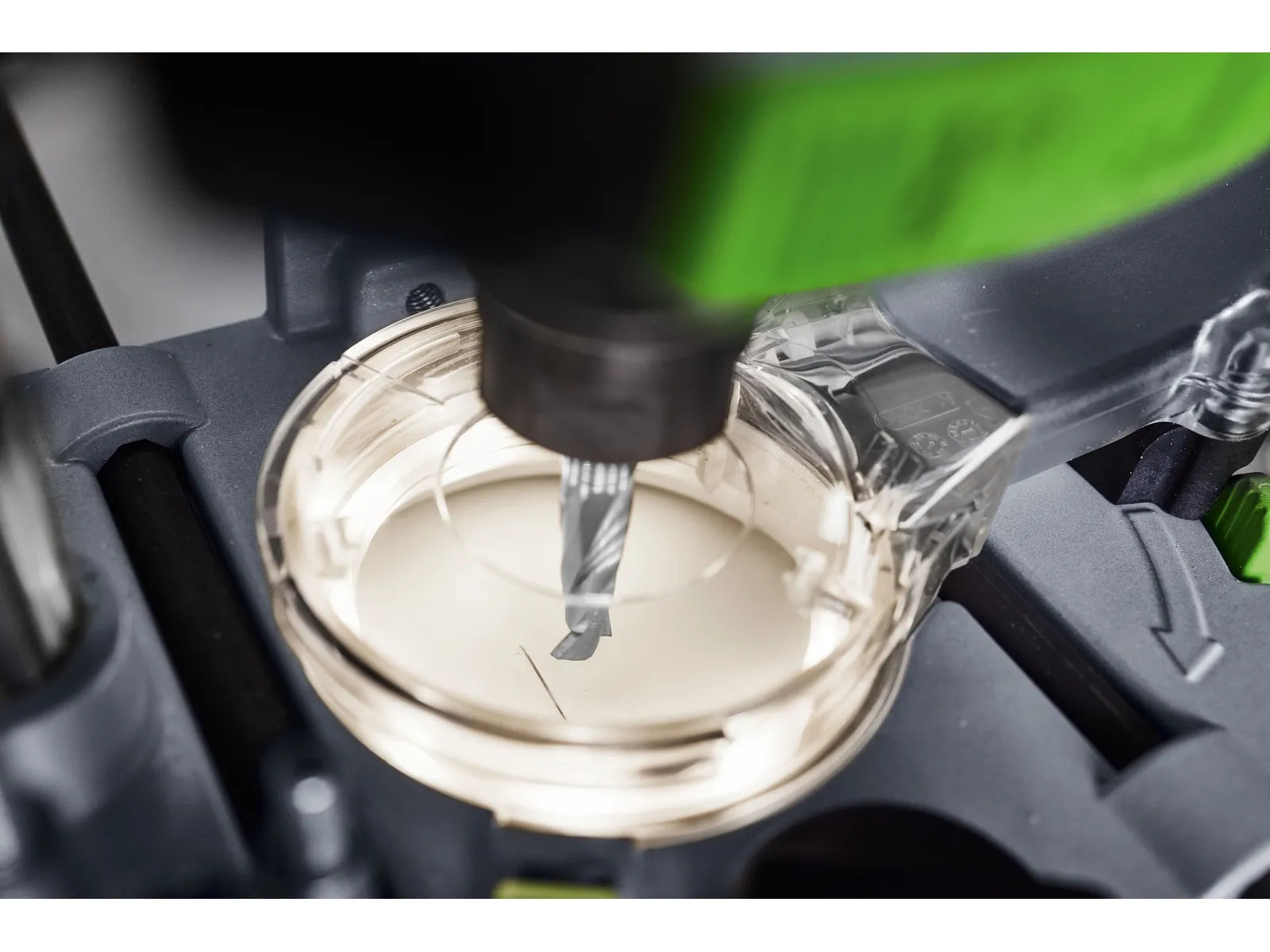

  • Achieve up to 99% dust extraction with the chip catcher and dust hood keeping edges sharp and your work area cleaner.
  • MMC Electronics maintain constant speed for smooth routing action and reliable cut quality across materials.

Utilization

Main applications

  • Rounding, chamfering, rabbeting, and profiling edges
  • Routing with the routing aid to place centered grooves
  • Routing solid surface material

Technical data

Specifications

Power consumption
1 400 watt
Idle engine speed
10 000 - 22 500 RPM
Routing stroke
2-3/4" (70 mm)
Weight
10.36 lbs (4.6 kg)
Routing depth fine adjustment range
5/16" (8 mm)
Drive type
120 VAC
Collet dia.
1/4" - 1/2" (6 - 12.7 mm)
Dust extraction connection dia.
1-1/16"/1-7/16" (27/36 mm)
Bench opening
2-1/2" (63 mm)
Cable length
13.123 ft (4 m)

Noise and vibration values

Routing: Uncertainty (vibration) K
1.50 m/s²
Routing: Uncertainty (noise) K
1.50 dB
Routing: Total vibration average, Ah
2.50 m/s²
Routing: Standards series EN
62841-2-17
Routing: A-weighted sound pressure level, LpA
98.00 dB(A)
Routing: A-weighted sound power level, LWA
106.00 dB(A)
