Powermatic PM2205 5HP Cyclonic Dust Collector - with HEPA Filter

In stock
Regular price $4,995.00
U.S. shipping is available for an additional fee. Please contact gahbriel@eagle-tools.com or (213)570-1774 for shipping fees & arrangements.

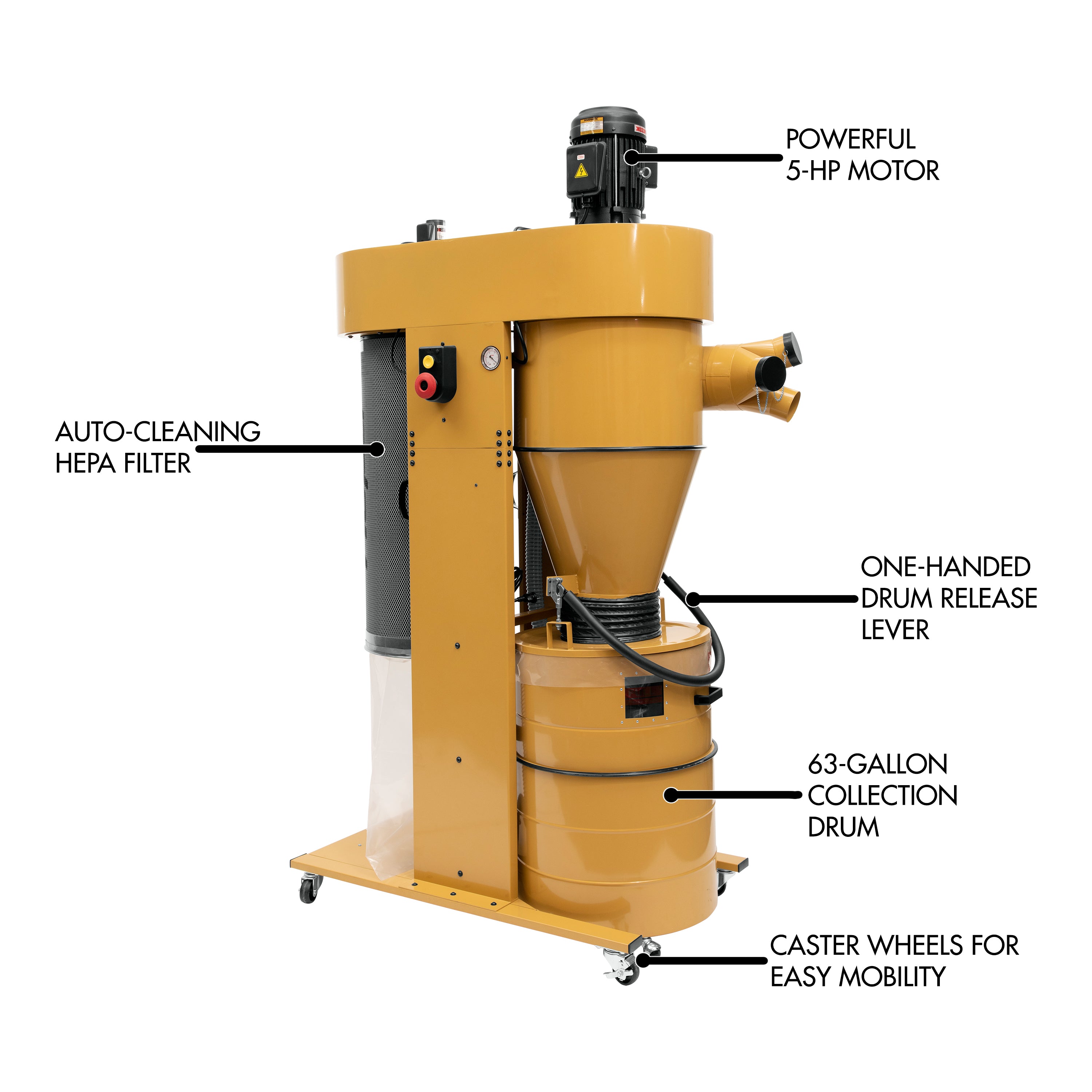

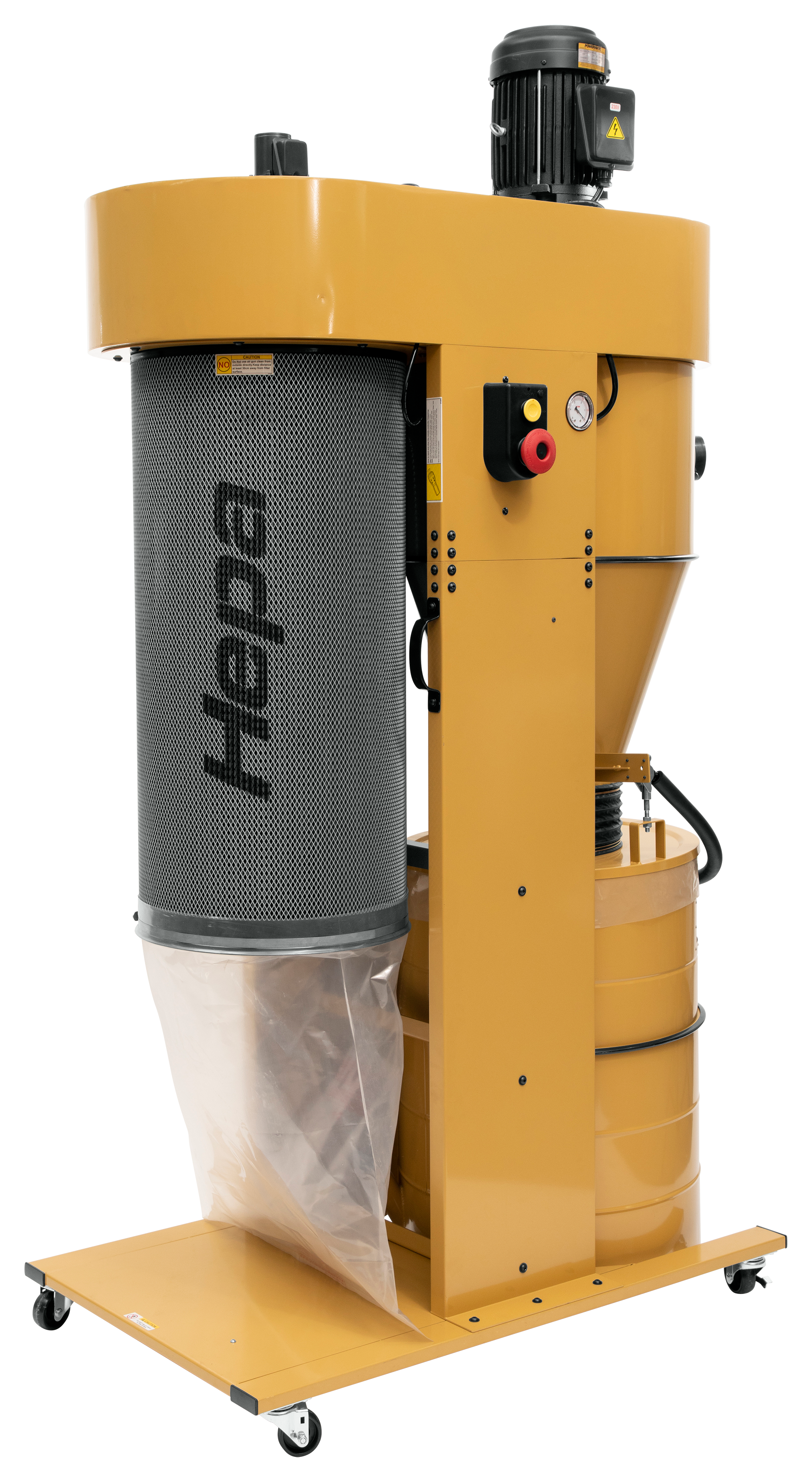

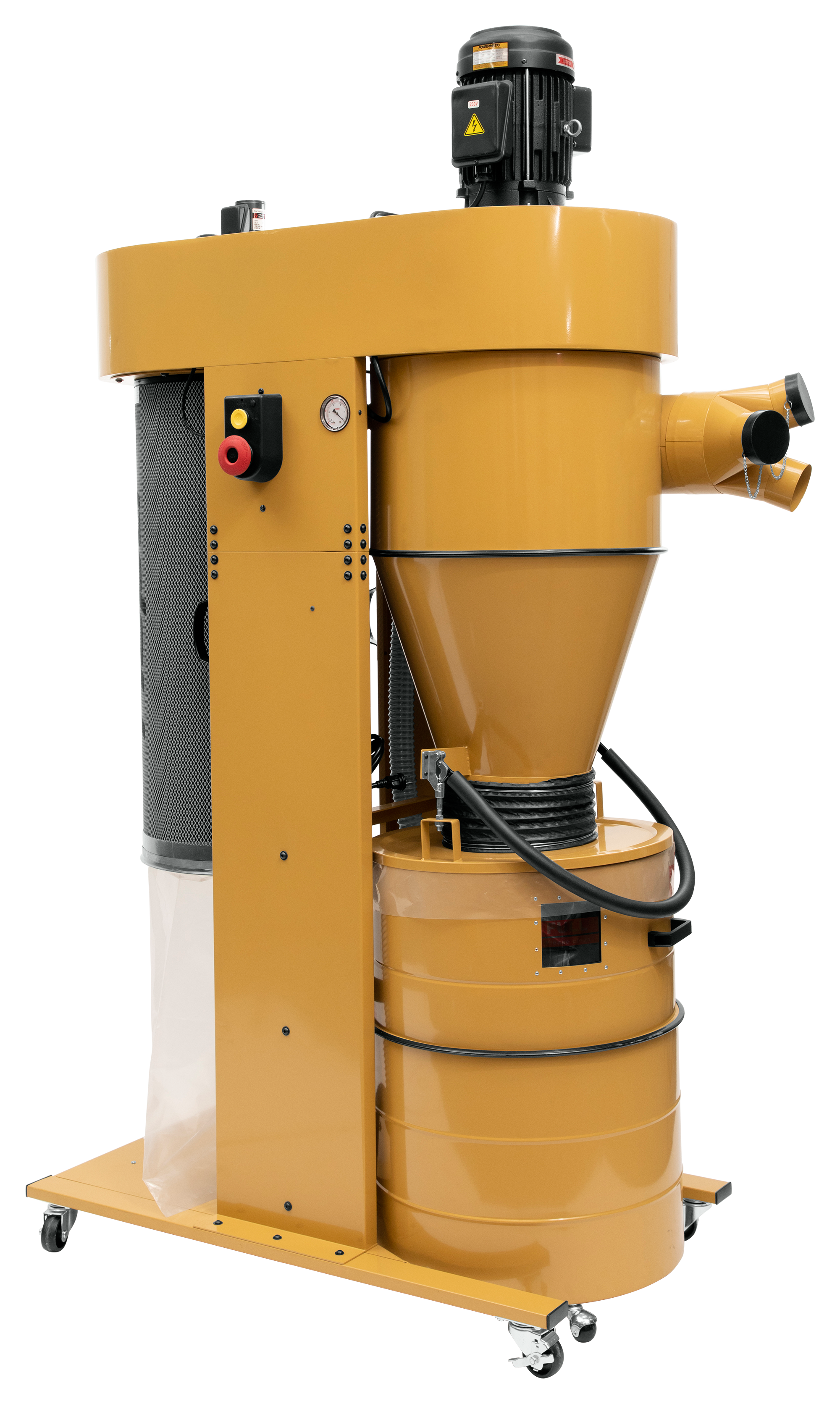

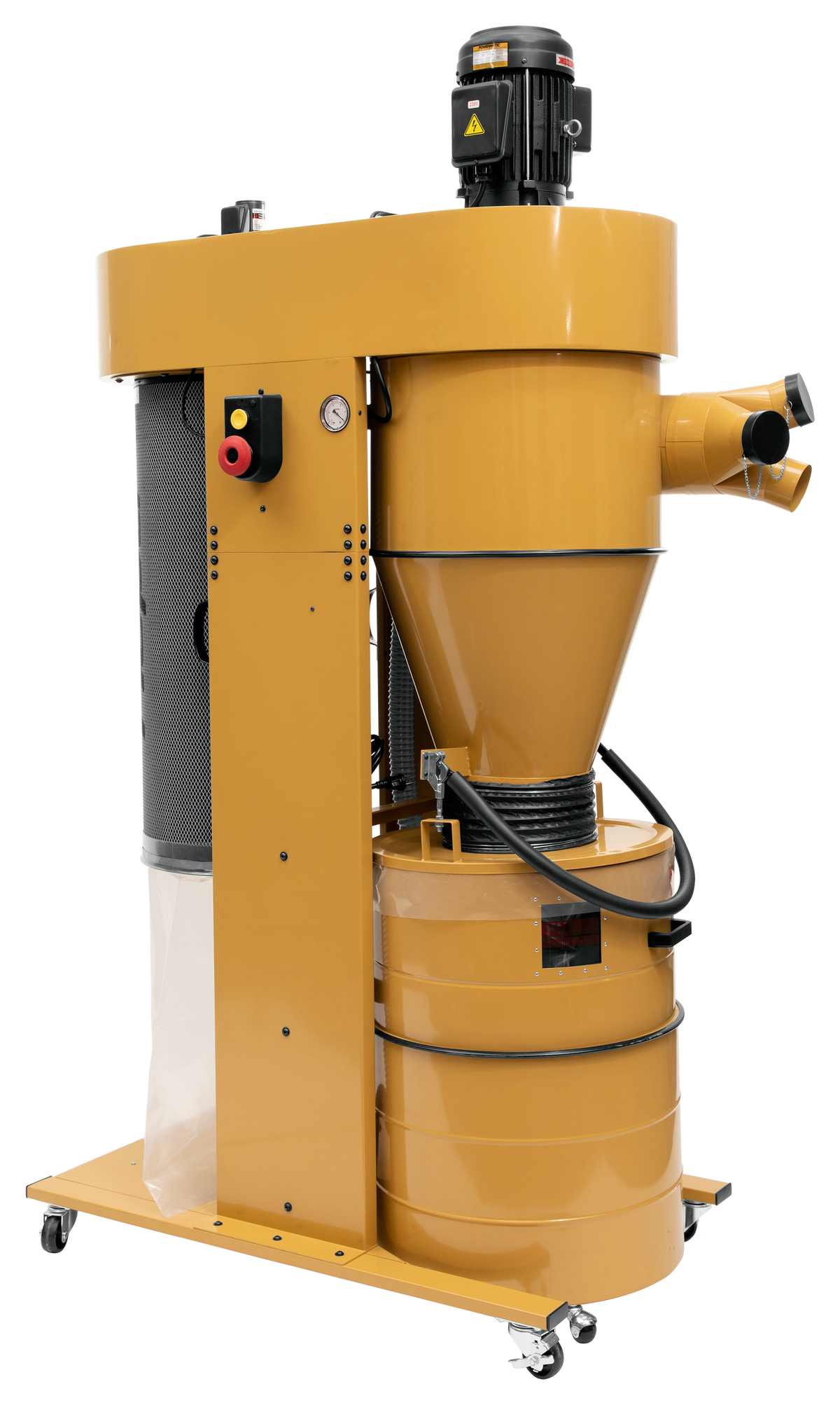

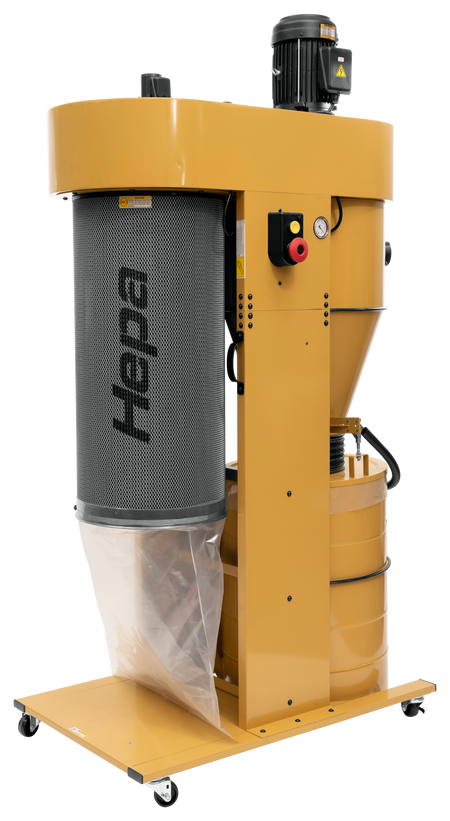

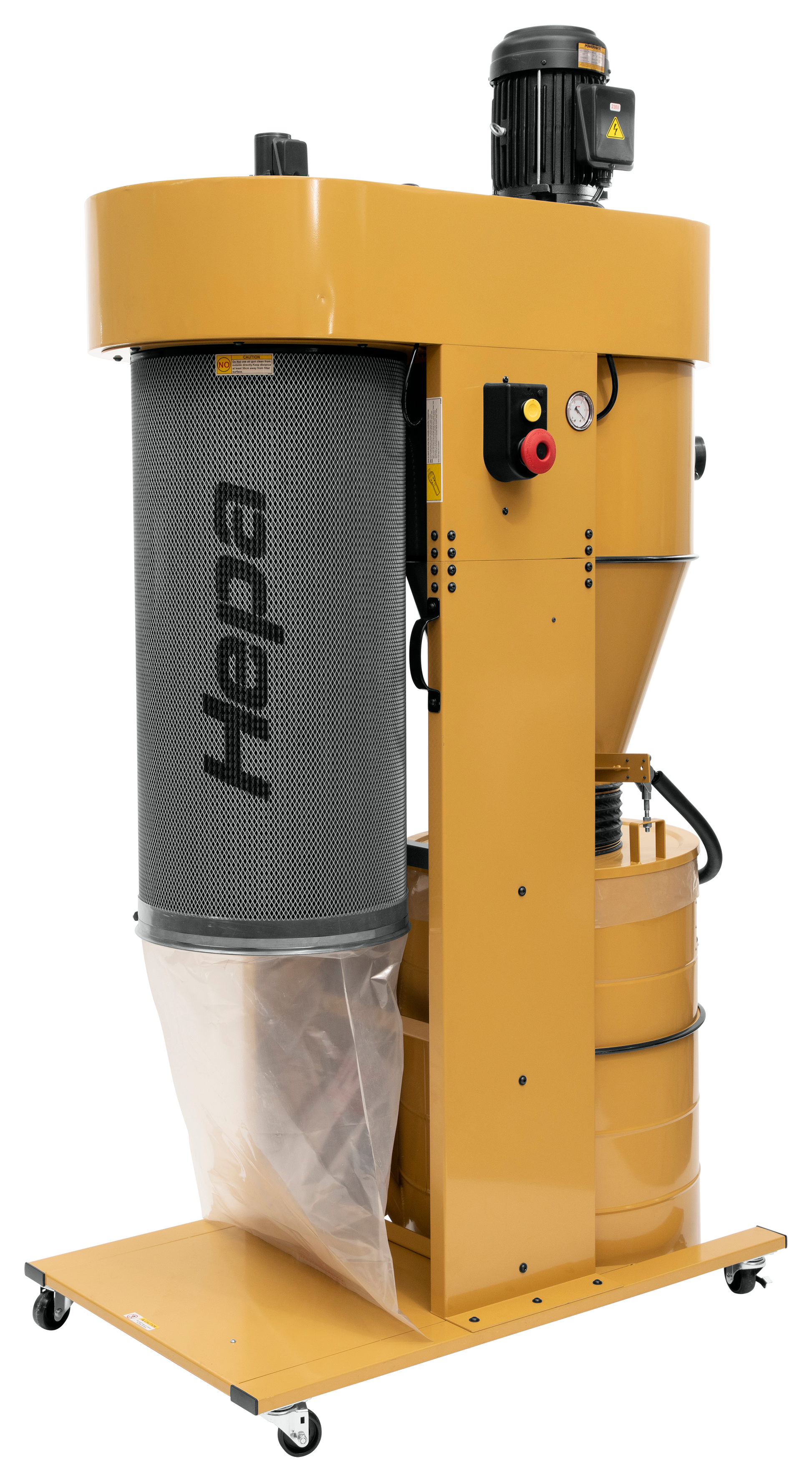

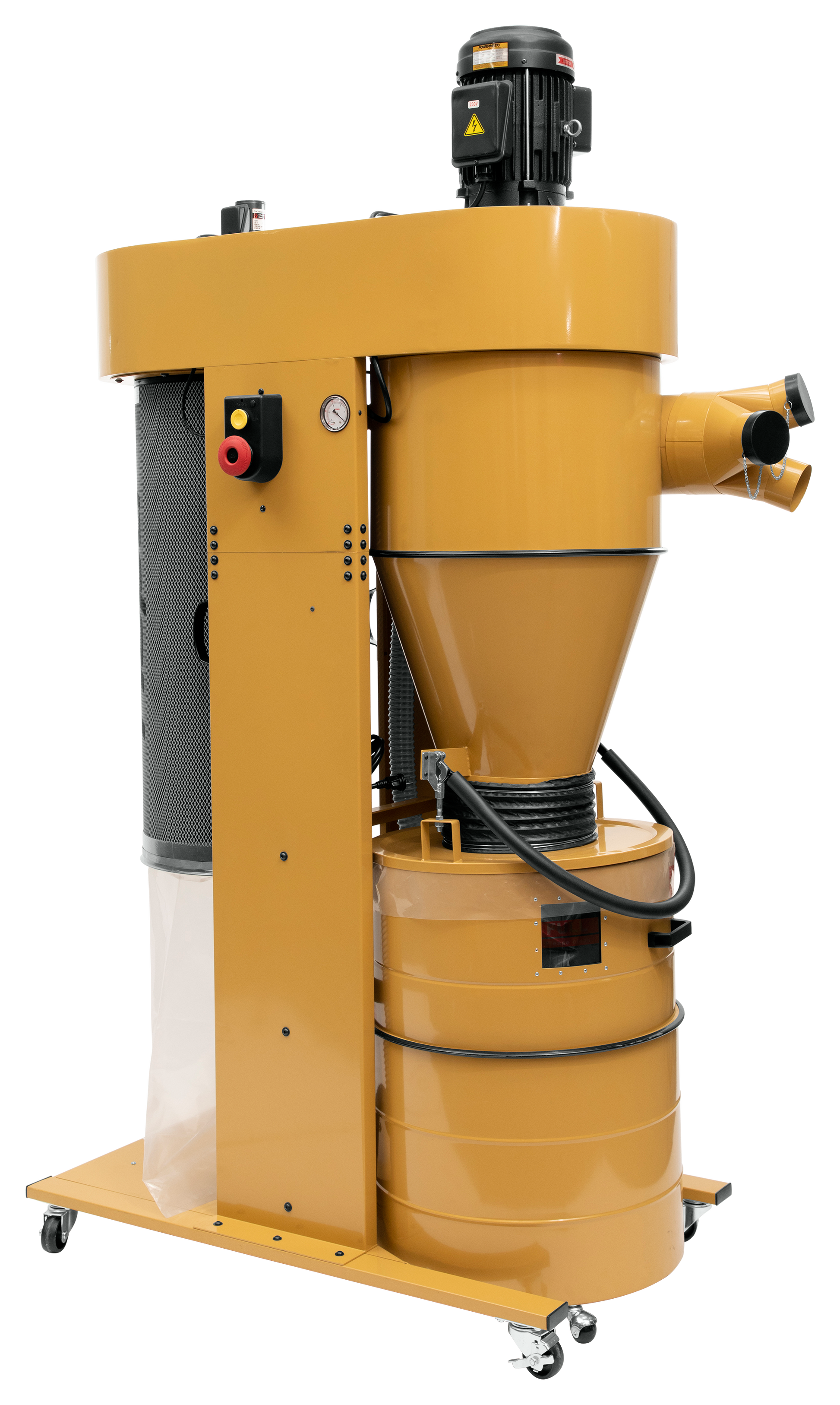

Introducing the Powermatic PM2205 5HP Cyclonic Dust Collector with HEPA filtration. The PM2205 pairs the benefits of cyclonic dust collection with the time honored legacy of the Powermatic standard. The all-metal construction provides a stable base for quiet operation and minimal vibration. The Powermatic Cyclone is the only cyclonic dust collector on the market with an Auto-Cleaning HEPA filter. The included HEPA filter traps 99.9% of all particles at 0.3 micron. With other market leading features such as a one-handed drum release lever, vacuum pressure gauge, and frameless dust bag vacuum retention, the Powermatic PM2205 Cyclone Dust Collector is an innovative addition to the Powermatic family.

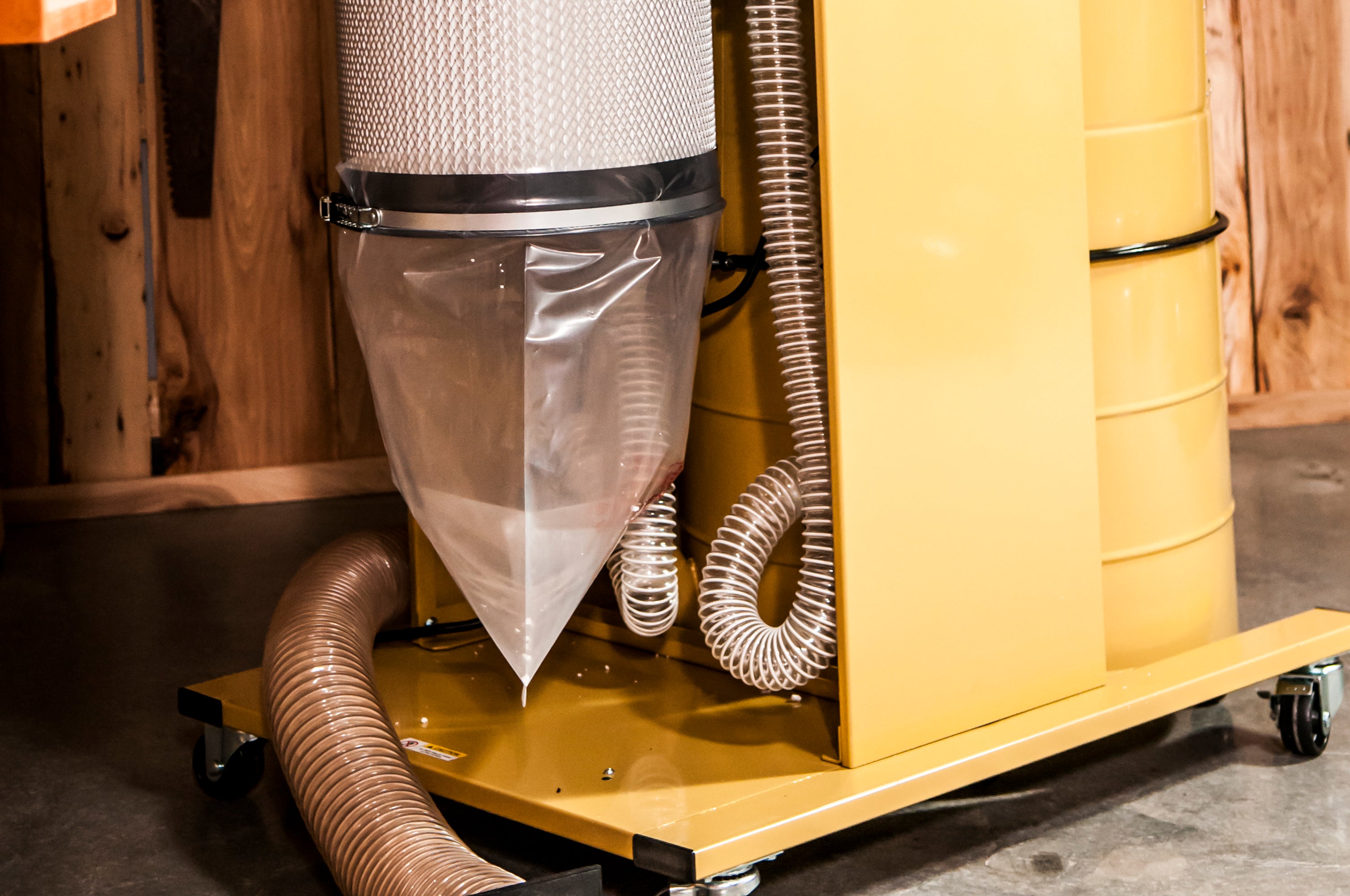

  • Proprietary auto-cleaning HEPA Filter technology for better filtration and longer filter life
  • HEPA Filter collects 99.9% of all particles passing through as small as 0.3 Micron
  • One-handed drum release allows for simple removal of the drum for bag changes
  • Powerful 5 HP motor moves 1,688 Cubic Feet of air per Minute

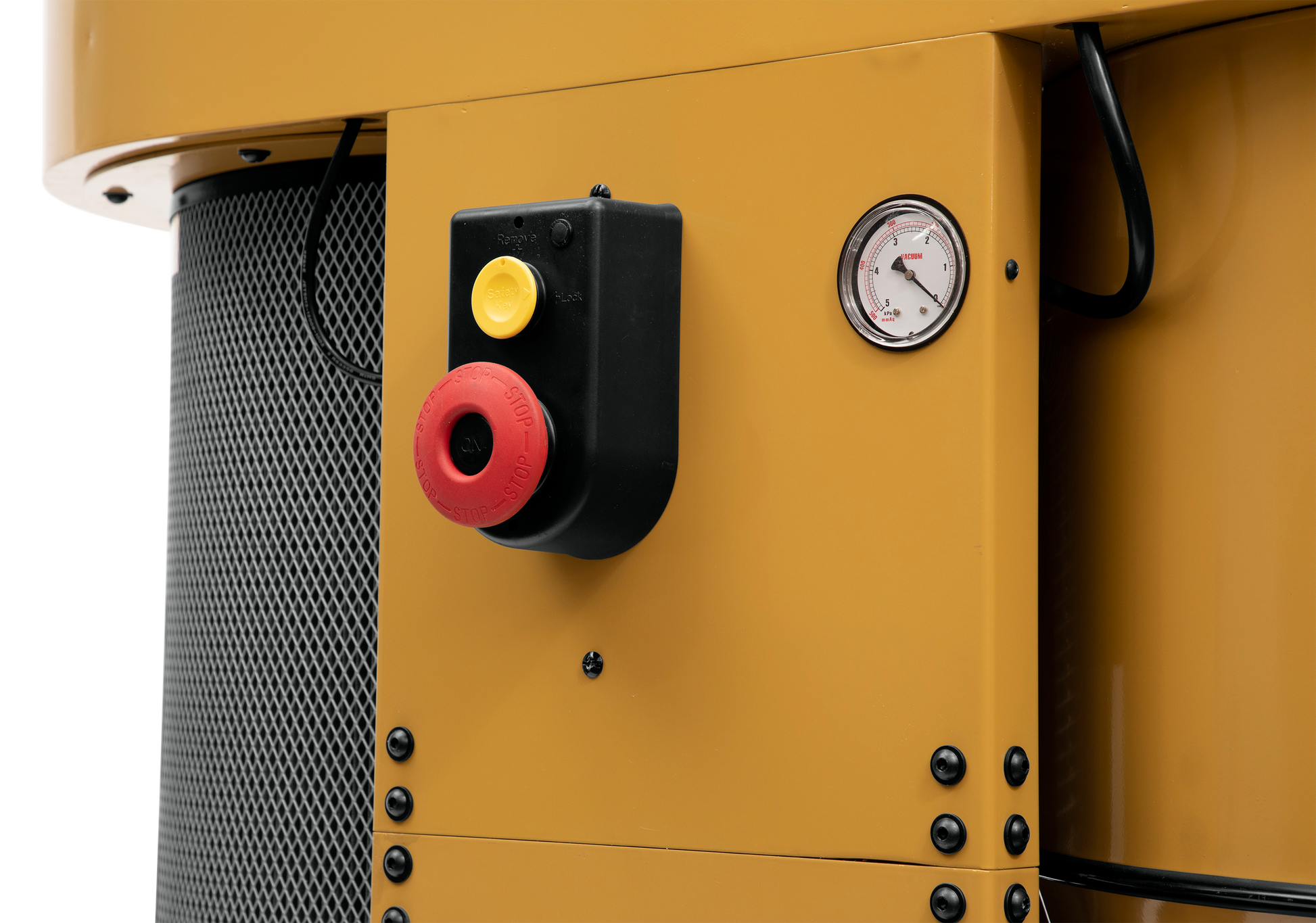

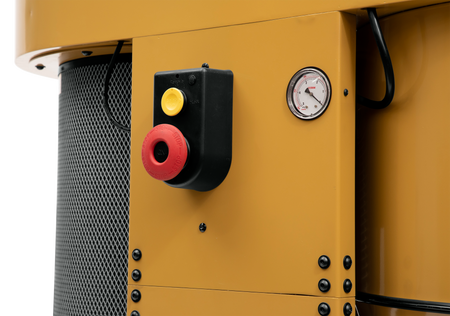

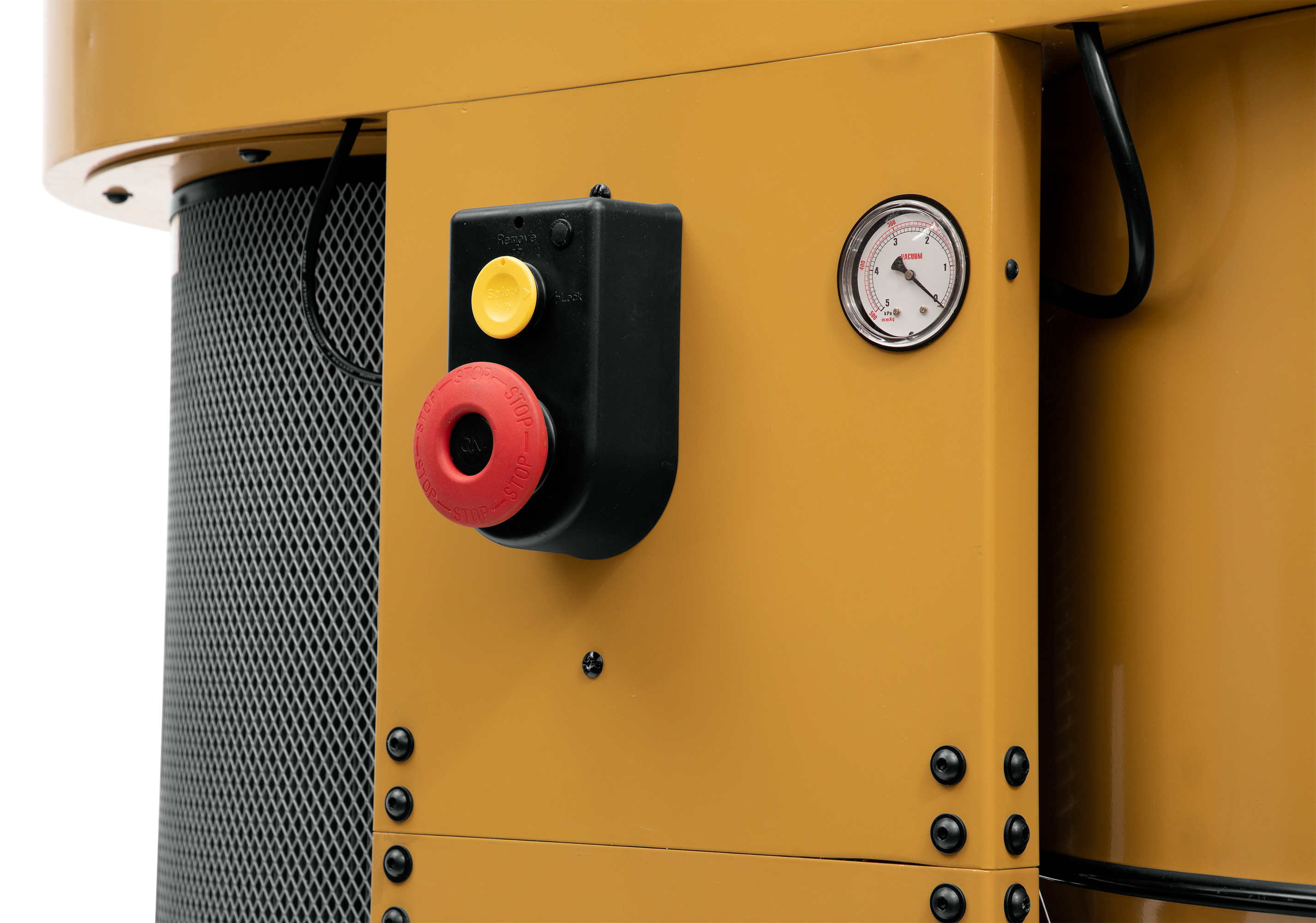

  • Vacuum pressure gauge for greater user feedback
  • 63 gal. steel collection drum
  • Integrated vacuum lines in the drum retain the bag without the need for a separate bag frame
  • Remote Control with 50 foot range for easy management in the shop.


Stock Number PM9-1792205HK
Efficiency (Micron) 2
Gross Weight (Lbs) 613
Model Number PM2205
Motor Amps 20
Motor Power (HP) 5
Motor Voltage (V.) 230
Net Weight (Lbs.) 487
Overall Dimensions (L x W x H) (In.) 63 x 28-15/16 in. (1600 x 735 mm)
Prewired Voltage (V.) 230
Prop 65 Cancer and Reproductive Harm
Sound Rating (Db.) 95 dB at 9.84 ft (3m)
Static Pressure (Wc.) 2.4 inH2O (60 mmH2O)
Style (Type) Dust Collector
