SawStop Premium Dado Set Systainer

Only 2 left
SKU: BTS-DS8-SYS
$549.00
At checkout, please choose either shipping or local pickup.

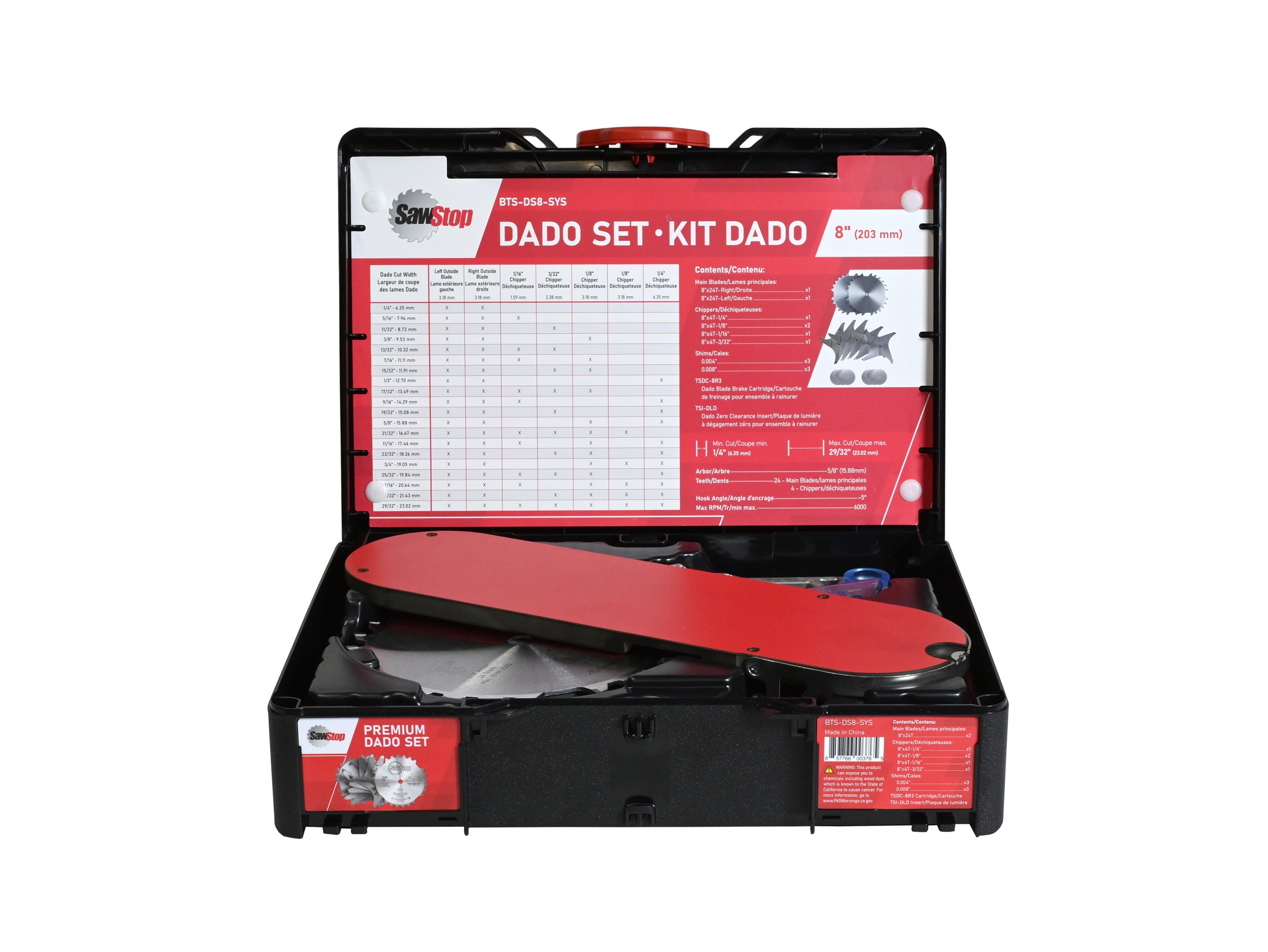

Protect and organize the SawStop Premium Dado Set in this durable, lockable, stackable Systainer storage case. This Systainer comes complete with a custom-molded insert to organize and secure the blades and related accessories.

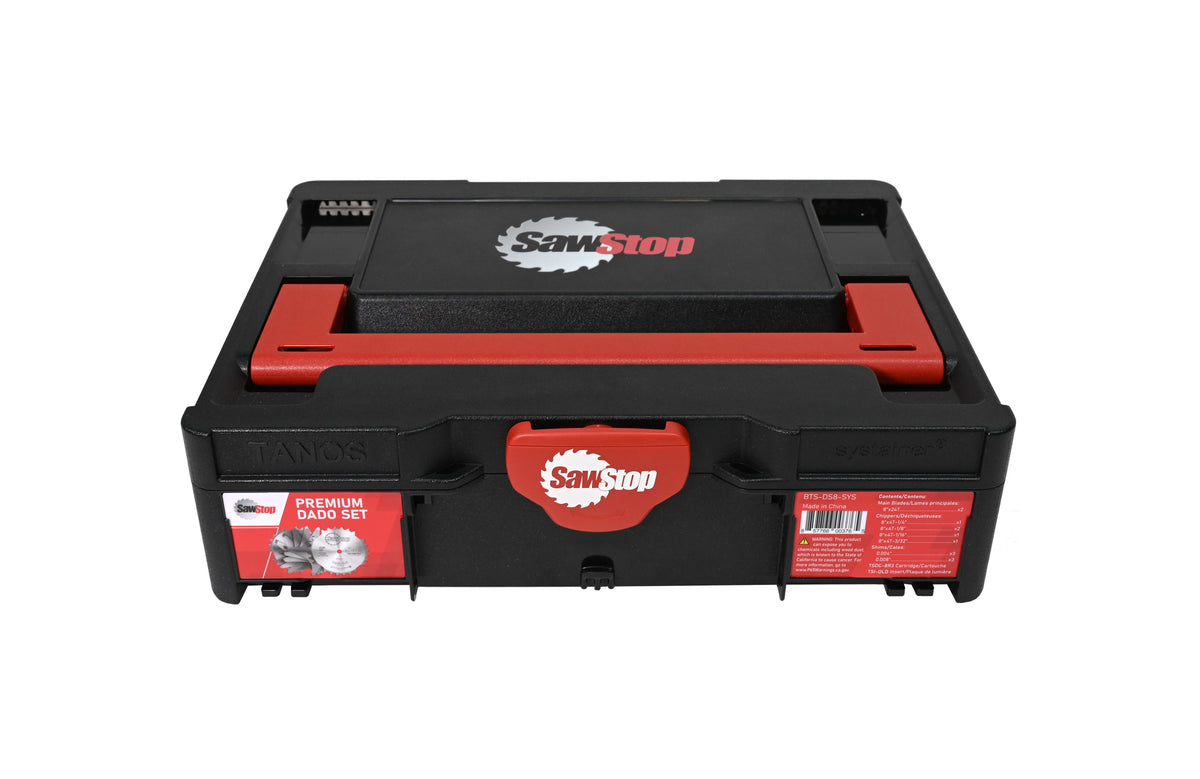

SYSTAINER: The Systainer system is a modular storage solution that can stack and link with a simple one-handed twist of the latch. Perfect for keeping track of your woodworking tools and accessories, SawStop Systainers pair well with any other brand of Systainers you may have.

CUSTOM-MOLDED INSERT: A custom-molded insert keeps all the components safely secured and organized.

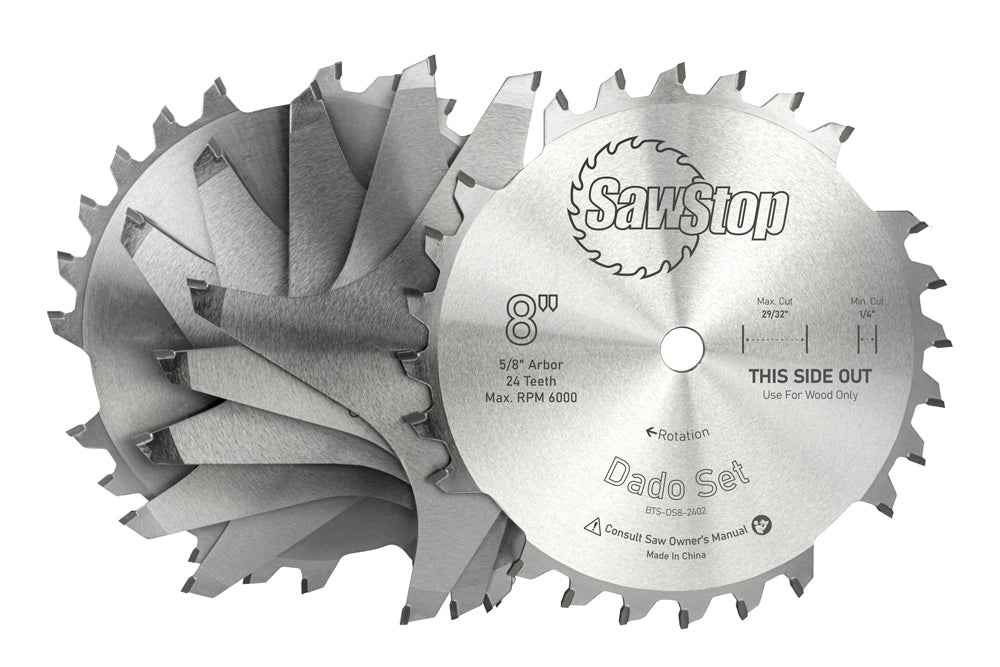

PREMIUM DADO SET: The SawStop Premium Dado Set features a pair of 8” 24-tooth outer blades with left- and right-bevel tooth grind, along with five flat–grind chippers in a variety of sizes for cutting precise widths. This set can be stacked for widths from 1/4” to 29/32”.

CLEAN CUTS: A -5° hook angle on the outer blades creates less tear-out and aggressiveness, resulting in cleaner one-pass cuts.

HELPFUL TIPS: A chart in the lid provides all the combinations of outer blade, chippers, and shims needed for precise widths.

COMPATIBILITY: The SawStop Premium Dado Set works on all SawStop table saws except the Compact Table Saw (CTS). Use of this set requires a dado brake cartridge (included in this Systainer kit).

NOTE: The included zero-clearance insert plate works only on SawStop cast iron table saws.

Features

  • Custom-molded foam insert keeps all the components safely secured and organized.
  • Dado set features 8” 24-tooth outer blades with left- and right-bevel tooth grind, and five flat–grind chippers in a variety of sizes to create precise widths.
  • This set can be set for widths from 1/4” to 29/32”.
  • -5° hook angle on the outer blades creates less tear-out and aggressiveness, resulting in cleaner one-pass cuts.
  • A chart in the lid provides all the combinations of outer blade, chippers, and shims needed for precise widths.
  • The Premium Dado Set works on all SawStop table saws except the Compact Table Saw (CTS).
  • NOTE: The included zero-clearance insert plate works only on SawStop cast iron table saws. The SawStop Jobsite Saw Pro requires a different insert plate (model TSI-DJB).

Included Items

  • (1) 4” x 15-1/2” x 11-5/8” Systainer storage case
  • (1) Dado set
    • Main Blades
      • (1) 8” 24-tooth right-angle outer blade
      • (1) 8” 24-tooth left-angle outer blade
    • Chippers
      • (1) 8” 4-tooth 1/4”-wide chipper
      • (2) 8” 4-tooth 1/8”-wide chippers
      • (1) 8” 4-tooth 1/16”-wide chipper
      • (1) 8” 4-tooth 1/32”-wide chipper
    • Shims
      • (3) .004”-thick shims
      • (3) .008”-thick shims
  • (1) 8” Dado brake cartridge
  • (1) Dado zero-clearance insert plate (for cast iron saws)

Specifications

  • Model number: BTS-DS8-SYS

  • Systainer outside dimensions:4” H x 15-1/2” W x 11-5/8” D

  • Systainer inside dimensions:2-3/4” H x 15-3/8” W x 10-3/4” D

  • Weight (full):3 pounds

  • Shims:(3) 0.004” and (3) 0.008”

  • (2) 24-Tooth Outer Blades:8” diameter, 1/8” kerf

  • (1) 4-Tooth Chipper:8” diameter, 1/4” kerf

  • (2) 4-Tooth Chippers:8” diameter, 1/8” kerf

  • (1) 4-Tooth Chipper:8” diameter, 1/16” kerf

  • (1) 4-Tooth Chipper: 8” diameter, 1/32” kerf

  • Weight (Including Case):8.2 lbs

  • Arbor hole:5/8”
