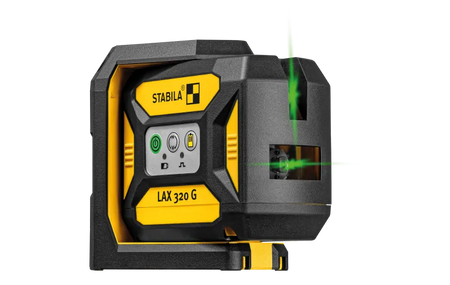

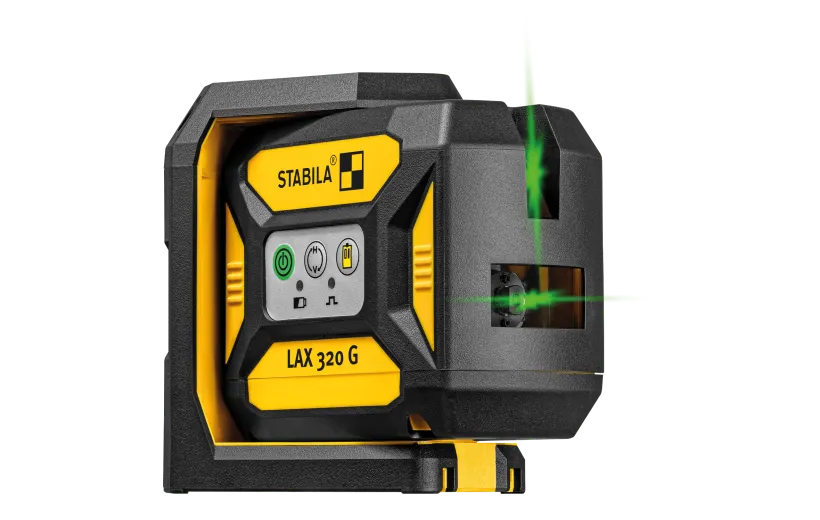

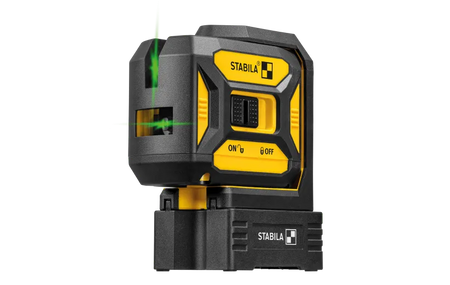

Stabila Cross line plus plumb dot laser LAX 320 G

In stock
SKU: 03190
$435.00
At checkout, please choose if you'd like to pick up this item or have it shipped (if offered).

Included in Delivery

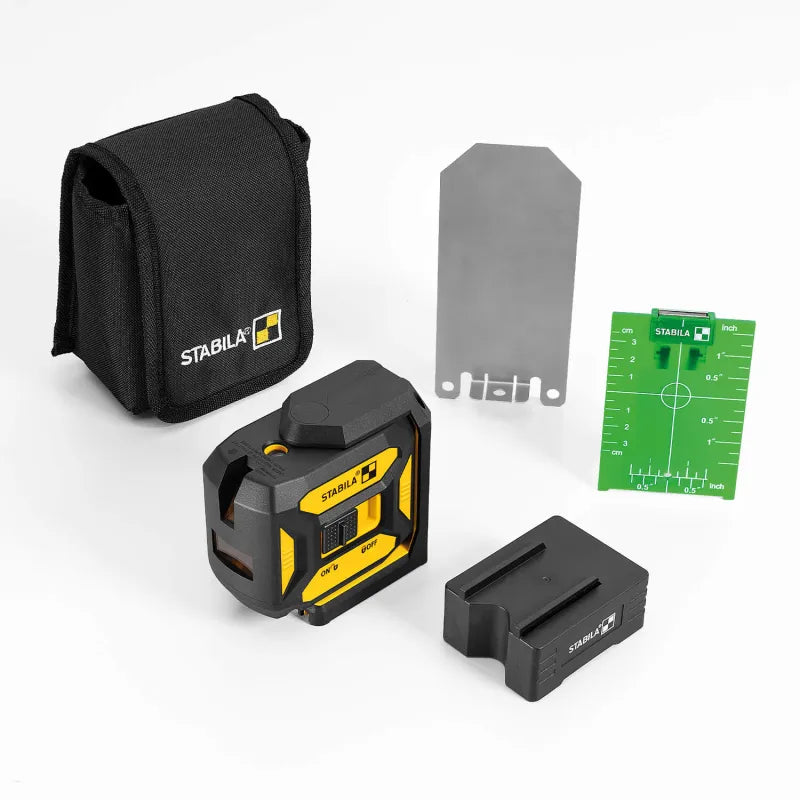

Cross line plus plumb dot laser LAX 320 G, laser base SLB 320, wall bracket, target plate, belt pouch, 2 x AA 1.5 V batteries

Discover the STABILA LAX 320 G, the compact cross line laser with plumb dots. With innovative GREENBEAM technology, this professional laser delivers long, razor-sharp lines for precision work at distances of up to 100 ft / 30 m. Manual mode enables flexible inclines, while the accessory set supports a range of applications. The screw-in housing optimally protects the laser optics in park position. Perfect for interior construction and everyone who relies on precision laser lines in their daily work. STABILA – work efficiently with perfect results!

Highlights

  • Compact laser that is always at hand and ready to use.
  • GREENBEAM technology for long, optimally visible laser lines.

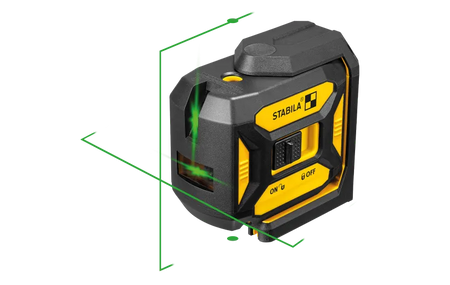

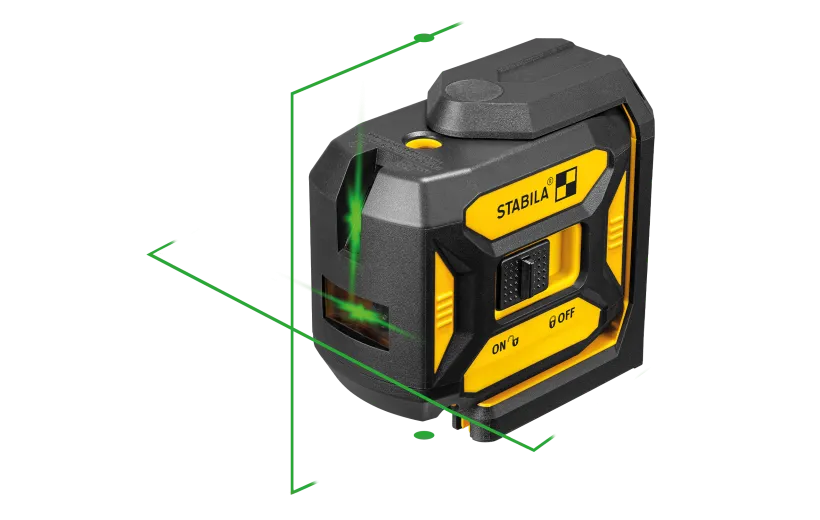

  • Versatile use thanks to cross lines and plumb dots.
  • Effective optics protection with screw-in housing.
  • Flexible positioning: 1/4” thread, magnets, laser base and wall bracket.

Description

  • Compact, battery-operated cross line laser with plumb dots for efficient work on the horizontal and vertical levels.
  • GREENBEAM technology: direct work on sharp and optimally visible lines – up to 100 ft / 30 m away.
  • High-performance diodes: the vertical line almost covers the entire room.
  • Manual mode: positioning of laser at any inclination with locked pendulum.
  • Fast self-leveling: immediate use thanks to pendulum technology.
  • Switchable pulse-modulated lines: compatible with working with line receivers (available as an option).
  • Energy-saving laser diodes: Operating time of up to 20 hours.
  • Screw-in housing: protects laser optics against dust and scratches.
  • Shock-absorbent STABILA soft grip casing protects the laser against damage from falling.

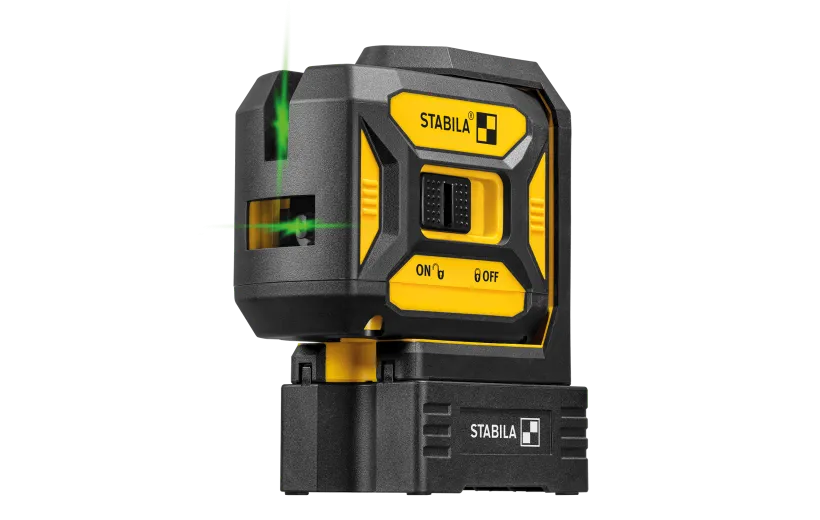

  • Attachable laser base: direct work on U-profiles.

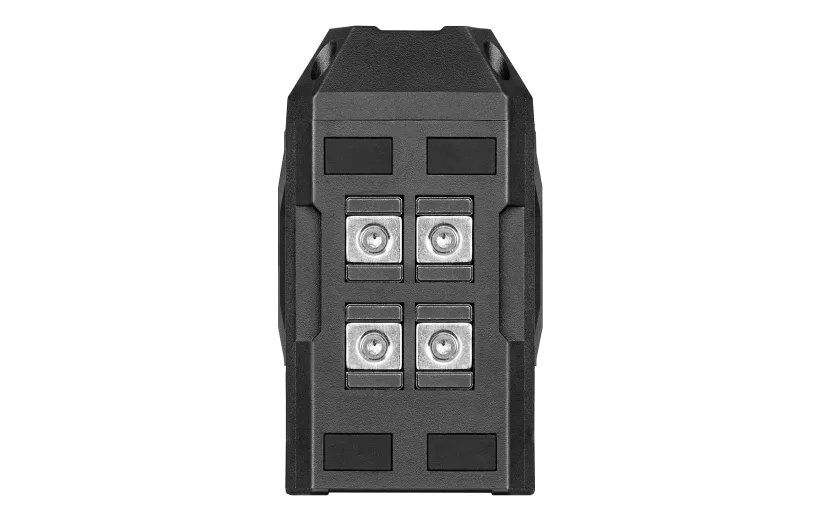

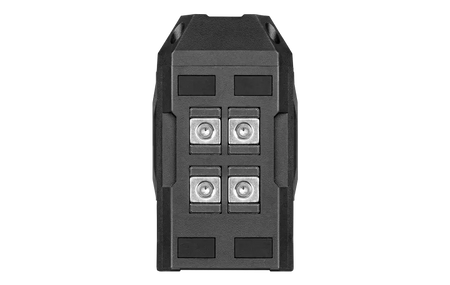

  • Flexible positioning: 1/4” thread, rare-earth magnets, wall bracket.
  • Belt pouch for safe storage.
  • Protection rating IP 54.

Technical Data

Laser class
2
Output
< 1 mW
Laser wavelength
510 - 530 nm
Self-levelling range ±
4°
Levelling accuracy ±
1/8 in @ 30 ft
Laser beam accuracy (up) ±
3/16 in @ 30 ft
Laser beam accuracy (down) ±
1/4 in @ 50 ft
Operating life
20 h
Protection rating
IP 54
Tripod connection
1/4"
